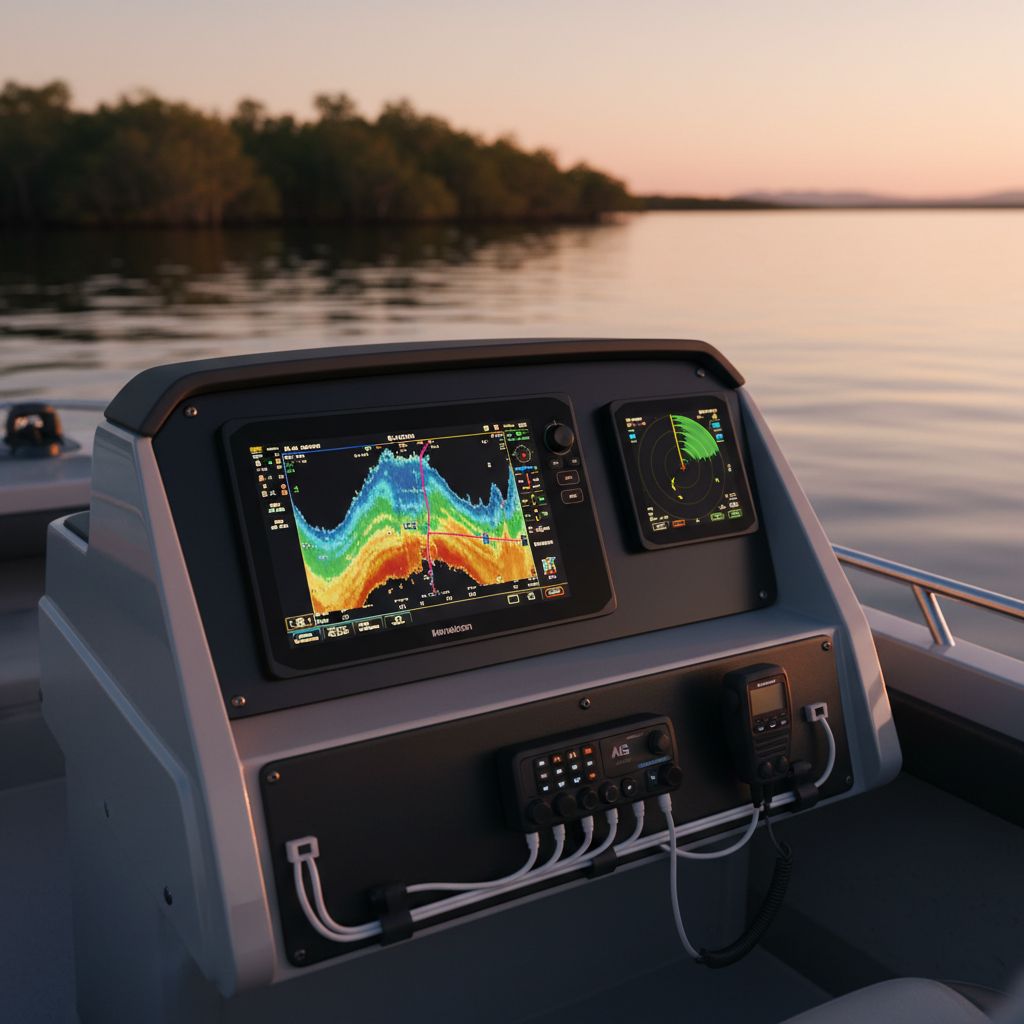

From Dash to Data: A Practical Boat Electronics Upgrade Path for Aussie Anglers

Real gear for real anglers—designed to help you fish smarter, longer, and in comfort. Most Aussie boats evolve a piece at a time: a sounder here, a GPS there, a radio somewhere else. Before long you’ve got devices that don’t talk, screens that don’t match, and a tangle of cables behind the dash. This upgrade plan shows you a clean path from “random parts” to an integrated network without breaking the bank. Think of it as building a simple highway—data moves where it’s needed, your information stays consistent, and your time on the water gets more productive.

Start with the foundation: a network that speaks one language

NMEA 2000 is the backbone that lets marine electronics share information such as position, depth, speed, water temperature, and engine data. If your current gear is a mix of old and new, it’s worth ensuring every device either speaks NMEA 2000 or can be translated to it via small gateways. The aim is simple: one source of truth for navigation, one source for depth, and one source for position—your chartplotter becomes the hub that displays what matters and ignores duplicates.

Backbone basics

The backbone is a single cable that runs from bow to stern with T-connectors every few metres for devices to tap in. You need a power tap, two terminators at the ends, and clean routing where the cable won’t get pinched. Devices connect via drop cables and appear on the network page of your chartplotter. Once it’s built, adding gear is straightforward and swapping devices doesn’t mean rewiring the whole boat.

0183 vs 2000

NMEA 0183 is the older standard—each device needs its own pair of wires, making tidy installations harder and slowing data sharing. NMEA 2000 is plug‑and‑play. If you have older gear, add a compact gateway to translate between the two. For new purchases, preference should be NMEA 2000 compatibility to keep life simple.

Define your water: match electronics to real-world Aussie habitats

Electronics purchase decisions become obvious when you match them to the water you fish most. Think in terms of depth ranges, structure complexity, navigation hazards, and how often you run at night or in fog.

Protected estuaries and rivers

Water is often shallow, structure is close to edges, and you spend time near pylons, timber, and weed beds. Prioritise clear sonar, good GPS, and a brightdisplay readable in sun. SideScan and DownScan help you edge around snags and find fish-holding habitat quickly.

Open bays and coastal within 10–20 nautical miles

You’ll want radar for safety in low visibility, AIS for traffic awareness, and a solid sounder that works through rough surface chop. Add redundancy if you run this water frequently—one GPS source is enough; two make low‑stress runs better.

Offshore to 30 nautical miles

Solid-state radar is almost mandatory for early warnings in fog or at night. Advanced sonar capabilities and weather integration become useful, and multi-screen setups start paying off—share sonar on one screen while viewing radar overlay and navigation on another.

Chartplotter first: build around one capable screen

The chartplotter is the command centre. It gathers data from sonar, radar, GPS, VHF, and instruments, and displays the right information in the right context. Choose the brightest screen that fits your console and can run in direct sun, check that user menus are intuitive, and confirm NMEA 2000 compatibility.

Mapping options

Electronic charts range from basic vector to detailed offshore and high‑resolution inshore mapping. If you fish unfamiliar coast, invest in detailed charts that show reefs, hazards, and structure. Where available, side-scan imagery is an excellent secondary layer for understanding bottom composition near favoured marks.

Brightness and mount position

Install where the screen can be read without squinting—glare reduces utility. Sunlight-readable displays make a noticeable difference in estuaries and off headlands. Keep cable runs short to your backbone and leave service loops at each drop for easy future maintenance.

Sonar strategies: which signals suit which water

Different sonar technologies help in distinct ways. Traditional 2D shows bottom and fish arches, CHIRP adds clarity, DownScan is photo-like, and SideScan sweeps left and right. Pick a combo that matches your habitat.

When CHIRP shines

CHIRP sweeps multiple frequencies and sorts noise from fish, improving target separation and reducing “false arches.” In weedy estuaries or mixed structure, CHIRP makes it easier to trust what you’re seeing and separate bait from predators.

DownScan and SideScan

DownScan gives you a direct, photo-like view under the boat—great for reefs, old timber, and weed edges. SideScan extends vision left and right as you drift or motor, letting you cover more water and locate holding zones faster than a simple sounder.

GPS and position data: redundancy for confidence

Position drives navigation, waypoint marking, and radar overlay accuracy. Most chartplotters have built-in GPS, but an external antenna improves reception under canopy or near steep banks. If you run offshore, WAAS/EGNOS correction improves accuracy for tight navigation marks.

Antenna placement

Mount external antennas high and clear of metal, but remember they still talk via digital networks. If you have a network, the GPS feeds the backbone and every screen sees the same position. That consistency matters when multi-screen setups share navigation data.

Radar: visibility when you need it most

Radar adds safety by detecting boats, land, rain cells, and bird flocks in low visibility. Solid-state radars offer compact size with good target separation—ideal for tinnies and small sport boats.

Overlay benefits

When radar is overlayed with charts, you gain context that plain radar doesn’t give. Identify navigation hazards early, separate traffic from weather, and plan safe routes when visibility drops. Bird flocks often mean bait—radar adds strategy.

VHF and AIS: communication and safety

VHF remains the primary communication device on boats. AIS reception adds nearby vessel positions on your screen—an invaluable safety feature in channels and anchorages. Connected VHFs can display DSC distress calls directly on your chartplotter.

DSC integration

If your VHF supports Digital Selective Calling, connecting via NMEA 2000 lets distress alerts show on your screen instantly. Keep the VHF antenna clean, route cable and power away from the network backbone, and test the integration before you need it.

Cable planning and clean installs

Good cable management is the difference between a tidy dash and a mess. Think in three layers: power distribution, backbone routing, and device drops. Plan routes before drilling—service loops are easier to add now than later.

Power and protection

Run dedicated power for electronics via fused distribution blocks. Keep power and data cables separate where practical to prevent interference. Use marine-grade cable, secure with clips every 30–40 cm, and protect sharp edges with grommets.

Backbone geometry

Place terminators only at the physical ends of the backbone. If the network doesn’t appear, confirm T-connectors are seated and check terminators first—many network issues come from one end missing its terminator.

Three realistic Aussie builds and budgets

Budget guides help you pick the path that fits your water and wallet. Think of cost in ranges rather than exact prices—models and taxes vary.

Estuary Essentials ($2,000–$3,500)

One 7–9 inch combo chartplotter with CHIRP sonar, a clear transducer suitable for shallow water, a reliable external GPS, and a compact VHF radio. This suits bream, flathead, whiting, and general estuary work where structure and clarity matter most.

Coastal Explorer ($5,000–$10,000)

Upgrade to a 9–12 inch screen with SideScan, add solid‑state radar, and integrate a VHF with AIS. This suits coastal bays and reef fishing within 30 nautical miles. Radar brings safety and strategy; AIS brings traffic awareness at channel crossings.

Offshore Premium ($12,000+)

Multiple displays, advanced sonar, radar, autopilot, and engine gateways. This is for serious offshore fishers and extended coastal runs. Multi-screen lets crew monitor different data simultaneously; autopilot keeps heading while you manage other systems.

Troubleshooting common integration issues

Most problems fall into power, T‑connectors, terminators, or data conflicts. Solving these quickly keeps upgrades smooth.

Devices not appearing

Check the network page. If the bus shows “not powered,” inspect the T‑connectors and terminators. Confirm the power tap is live and clean, and verify polarity at the distribution block. A clean bus shows every device with unique IDs.

Data conflicts

Two GPS sources can give different positions. Set a prioritised source in your chartplotter network menu. If your depth fluctuates oddly, confirm one sounder owns depth while others provide track or temperature.

Protecting your investment: the small habits that matter

Electronics live in a harsh place—sun, salt, humidity, and vibration. Simple care extends their useful life significantly.

Sun cover and shade

Use console covers when the boat isn’t in use, and avoid baking displays on dashboards. Where possible, install screens in shaded areas. Bright sun reduces readability and accelerates plastic aging.

Salt rinse and connections

Rinse electronics with fresh water after salt sessions, focusing on connectors and transducers. Check connector pins for corrosion and clean with electrical contact cleaner if necessary. Light corrosion inhibitor on metal parts helps in harsh environments.

Mobile and wireless extensions

Modern chartplotters mirror to phones and tablets via wireless. This extends functionality without adding hardware. Backup navigation apps work on phones, and some integrate with wireless adapters to show real-time network data.

Wireless mirroring

You get the sonar, charts, and waypoints on your phone, letting you move around the boat while staying informed. Some systems allow two-way control so you can mark waypoints from the phone and see them instantly on the main display.

Case snapshots: upgrade moments that changed the day

Short stories show how thoughtful upgrades improve outcomes without overcomplicating the setup.

Snapshot 1: Noosa — SideScan finds the edge

Conditions: muddy outflow meeting clearer bay water.

Action: added SideScan, ran along the clean edge of the colour band.

Outcome: structure hidden under stained water appeared clearly; better casts and improved hook-ups.

Takeaway: SideScan unlocks habitat visibility in mixed clarity.

Snapshot 2: Derwent — Radar adds night confidence

Conditions: late run in fog with low visibility.

Action: solid-state radar overlay on charts.

Outcome: early detection of traffic and land; safe passage without stress.

Takeaway: radar turns low‑light runs into controlled navigation.

Snapshot 3: Swan River — AIS keeps you predictable

Conditions: crossing a busy shipping channel with mixed traffic.

Action: VHF with AIS showed nearby vessel positions on the screen.

Outcome: timed the crossing to avoid large traffic; safer moves overall.

Takeaway: AIS integration boosts situational awareness.

Snapshot 4: Swan Coast — Clean backbone ends confusion

Conditions: multiple devices, inconsistent data.

Action: installed terminators correctly, cleaned power tap, and prioritised GPS.

Outcome: network page showed full device list; data became consistent across screens.

Takeaway: terminators and power integrity solve most bus issues.

Final thought: build a highway, not a heap

Your goal is a network that gives the right information at the right time. Choose a capable chartplotter, connect compatible devices via NMEA 2000, plan clean cable runs, and grow the system one component at a time. When every device shares clean data, you fish with more confidence and less fuss. That’s the upgrade path that actually pays off on the water.
