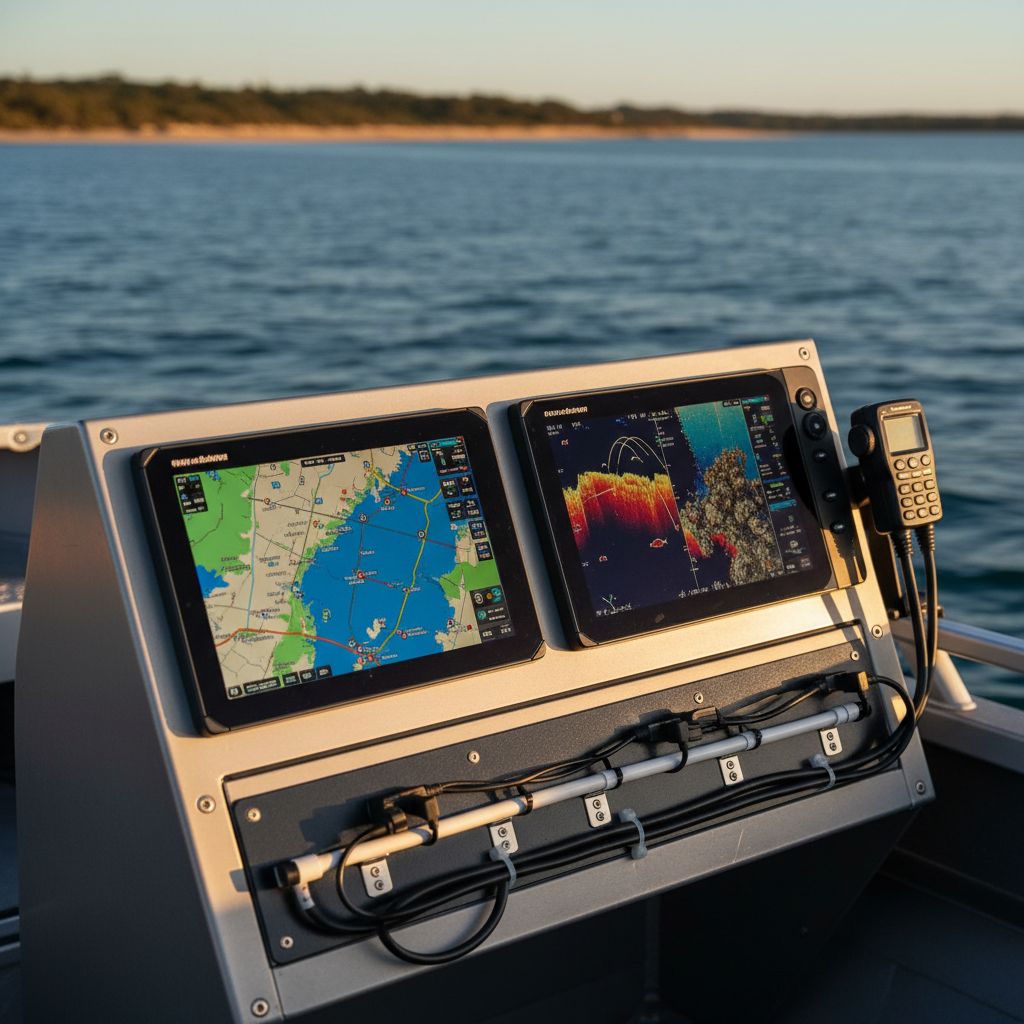

Boat Electronics Integration: Building a Connected Aussie Fishing Setup

Real gear for real anglers—designed to help you fish smarter, longer, and in comfort. Australian anglers have more choices than ever when it comes to boat electronics. Fish finders, GPS chartplotters, radar, autopilots, and even mobile device integration can now talk to each other, sharing waypoints, sonar returns, and real-time data across screens. But most boat owners treat these systems as separate islands rather than an integrated network. This guide shows you how to think about your electronics as one connected system: choosing compatible components, planning cable runs, setting up NMEA 2000 networks, and using your existing mobile devices to extend functionality without breaking the bank. Whether you're fitting out a new tinny or upgrading an older console, these principles help you build a setup that works together rather than a collection of devices that barely speak to each other.

Why integration matters more than individual specs

A $500 fish finder with brilliant sonar is useful, but when it can't share waypoints with your GPS or display engine data, you end up juggling screens and missing information at critical moments. Integrated electronics share data across all devices—waypoints marked on your sonar appear on your chartplotter; engine diagnostics display on your screen; radar overlays on charts help you navigate in low visibility. The mindset is simple: individual specs matter less than how well your system works as a whole. An integrated setup costs less than buying separate devices that can't communicate, and it makes your time on the water more productive.

The foundation: NMEA 2000 and how it connects your gear

NMEA 2000 is the standard that lets marine electronics talk to each other. Developed by the National Marine Electronics Association, it uses a single backbone cable that carries data between all compatible devices—fish finders, chartplotters, engines, radios, autopilots, and more. Understanding this backbone is the key to planning an integrated system.

The backbone concept

Think of the NMEA 2000 backbone as a single highway running through your boat. Devices tap into this highway at any point, receiving power and data from the same cable. A typical backbone setup includes a power tap (fused from your boat's battery), a main drop cable running from bow to stern, and T-connectors that let devices connect wherever needed. The beauty is simplicity: once the backbone is in place, adding or moving devices is straightforward.

What NMEA 2000 carries

NMEA 2000 carries dozens of data types including GPS position, depth, speed, water temperature, wind direction, engine diagnostics, fuel flow, and autopilot heading. Different devices transmit different data; your chartplotter might receive depth from the fish finder, GPS position from an external antenna, and engine data from a NMEA 2000 engine gateway—all simultaneously. This shared data is what makes integration powerful.

NMEA 0183: the older standard

NMEA 0183 is the older communication standard still found on many fish finders and chartplotters. It requires separate wiring for each device and is slower than NMEA 2000, but many affordable units still use it. If you're mixing old and new gear, you may need a gateway converter to translate between NMEA 0183 and NMEA 2000. For new installations, stick with NMEA 2000-compatible devices to avoid these complications.

Planning your network: where to start

Building an integrated system starts with understanding what you want to achieve and choosing components that work together. Work backward from your needs: what data do you want, where do you want it, and how should it all connect?

Identify your priorities

Ask yourself what information matters most on your boat. For estuary anglers, depth and structure mapping might dominate. Offshore fishers need radar and weather overlay. Inland dam enthusiasts might prioritise clear sonar and GPS marking. Listing your priorities helps you allocate budget to the devices that matter most and avoid overspending on features you'll never use.

Choose a primary display

Most integrated systems centre on one primary display—a chartplotter or combo unit that shows multiple data types simultaneously. This screen becomes your dashboard, receiving data from all other devices and displaying what you need. Choose the largest screen your console can reasonably fit; cramped displays force you to zoom and scroll unnecessarily. For most Aussie tinnies, a 7-9 inch screen hits the sweet spot between visibility and console space.

Add compatible secondary devices

Once your primary display is chosen, add devices that integrate with it. A fish finder transducer, GPS antenna, radar, and VHF radio can all feed data to your chartplotter. Before buying, check that each device is NMEA 2000 compatible and confirmed to work with your display. Manufacturers often list compatible devices on their websites; if in doubt, ask before you purchase.

Core devices: building your connected system

Five device categories form the foundation of most integrated Aussie boat setups. Understanding what each does helps you choose what's right for your fishing style.

Chartplotter: the command centre

The chartplotter displays electronic charts, shows your position, marks waypoints, and serves as the hub for all other devices. Modern units accept data from sonar, radar, AIS, and engines, displaying everything on one screen. Look for bright screens readable in direct sunlight, intuitive menus, and NMEA 2000 compatibility. Mapping options include basic vector charts, detailed offshore charts, and sidescan imaging that shows structure in photo-like detail.

Fish finder: seeing below the surface

Fish finders (sometimes called sounders or sonars) use sound waves to display underwater information. Traditional 2D sonar shows bottom contours and fish as arches; CHIRP sonar sweeps multiple frequencies for clearer, more detailed returns; DownScan provides photo-like bottom views; SideScan extends vision left and right of the boat. For most Aussie fishing, a CHIRP-enabled combo unit covers 90% of needs—detailed enough for estuary work yet capable in deeper offshore water.

GPS and antenna: position and navigation

Most chartplotter units include built-in GPS, but external antennas improve reception, especially under canopy, near steep banks, or in narrow channels. For offshore work, an external antenna with WAAS/EGNOS correction improves accuracy. GPS feeds position data to your chartplotter, enabling waypoint marking, route planning, and navigation back to productive marks.

Radar: seeing through darkness and fog

Radar uses radio waves to detect objects beyond visual range—essential for offshore work, navigation in poor visibility, and finding bird flocks that indicate bait schools. Modern solid-state radars offer excellent target separation in a compact size suitable for tinnies. For Aussie anglers, radar proves valuable when fishing early mornings, late evenings, or in the frequent fog patches that form on coastal waters.

VHF radio: communication and safety

VHF radio remains the primary communication and safety device on boats. Modern units include AIS (Automatic Identification System) receivers that display nearby vessel positions—an invaluable safety feature in busy shipping channels or crowded anchorages. NMEA 2000-connected VHFs can display DSC distress calls directly on your chartplotter, speeding response times in emergencies.

Mobile device integration: extending your system

Your smartphone or tablet can become a powerful extension of your boat electronics, often at a fraction of the cost of dedicated hardware. Many chartplotter manufacturers offer free or paid apps that mirror functionality to mobile devices, letting you monitor conditions from anywhere on the boat.

Wireless mirroring

Many modern chartplotters support wireless mirroring to mobile devices. This lets you view your sonar, charts, and waypoints on a phone while moving around the boat—particularly useful for a spotter calling out structure to the skipper. Some systems allow two-way control, letting you mark waypoints from your phone and see them instantly on the main display.

Dedicated mobile apps

Third-party apps like Navionics, iNavX, and others turn phones and tablets into capable chartplotters. While not as powerful as dedicated hardware, these apps work for backup navigation, trip planning, and sharing waypoints with other anglers. Some apps integrate with wireless NMEA 2000 adapters, receiving real-time data from your boat's network and displaying it on your mobile device.

Action cameras and data overlay

Action cameras like GoPro and DJI Osmo Action capture your fishing footage, but many models can overlay telemetry data—speed, location, even sonar screenshots—directly onto video. This adds production value to your clips and creates detailed records of productive marks. Some anglers use this data to analyze patterns across multiple trips.

Cable planning and installation basics

A well-planned cable installation makes the difference between a tidy, reliable system and a spaghetti mess that causes problems. Take time to plan routes before drilling holes.

Power distribution

Run dedicated power circuits for electronics, fused appropriately for each device. Use marine-grade cable suitable for outdoor use, and route power wires separately from data cables to prevent interference. A common distribution block near the console keeps connections tidy and makes troubleshooting easier. Include a master switch that cuts power to all electronics when the boat is unattended.

Data cable runs

NMEA 2000 uses a thin cable (typically sold as drop cable or backbone cable) that carries both power and data. Run the backbone along a protected route—inside gunwales, under console panels, or through dedicated conduit. Leave service loops at each device connection point; these loops provide slack for future servicing and prevent strain on connections. Secure cables every 30-40 centimetres with cable ties, avoiding tight bends that could damage wires.

Transducer installation

The transducer that sends and receives sonar signals requires careful mounting. Transom-mounted transducers suit most aluminium tinnies—simple to install and adjustable for correct angle. Through-hull transducers mount inside the hull and offer cleaner readings at speed but require drilling through the hull and proper sealing. In-hull (inside-the-hull) transducers stick to the inside of fibreglass hulls, avoiding external mounting but potentially losing signal strength through thick hulls.

Building your system: three realistic Aussie builds

Budget and fishing style dictate your setup. These three builds cover common scenarios, balancing cost against capability.

Essential estuary setup ($1,500-$2,500)

Focus on sonar and GPS for bays, estuaries, and inland dams. A 7-inch combo chartplotter with built-in CHIRP sonar handles most needs; add a GT30 or similar transducer for clear SideScan imaging in shallow water. Mark waypoints directly on the unit, using the screen to identify structure and bait. This build works for bream, flathead, whiting, bass, and estuary predators.

Coastal offshore setup ($4,000-$8,000)

Adds radar for offshore navigation and better sonar for deeper water. A 9-inch or larger chartplotter with CHIRP and SideScan handles reef fishing to 200 metres; pair with a solid-state radar dome for weather and traffic awareness. Include a VHF radio with AIS for safety in busy coastal waters. This build suits anglers targeting reef fish, mackerel, and pelagics within 30 nautical miles of port.

Premium extended setup ($10,000+)

A fully integrated network with multiple displays, advanced sonar, radar, autopilot, and engine integration. Multiple screens let different crew members view different data; autopilot controls heading while you manage other systems. Engine gateways display fuel flow, RPM, and diagnostics directly on screen. This setup suits serious offshore fishers, commercial operators, or anyone spending extensive time on the water.

Troubleshooting common integration issues

Most electronics problems stem from three sources: power, connections, or configuration. Understanding these helps you diagnose issues quickly.

Power problems

If devices won't turn on, check fuses first—each device should have a dedicated fuse in the power distribution. Verify voltage at the device connection; low voltage causes erratic behaviour. Poor earth connections cause intermittent problems—clean and tighten earth points on the engine and console.

Connection issues

NMEA 2000 devices should appear in your chartplotter's network page. If devices don't appear, check that the backbone is powered (the network requires power to function), that T-connectors are fully seated, and that terminator plugs are in place at each end of the backbone. A broken terminator prevents the entire network from functioning.

Data conflicts

Sometimes two devices transmit conflicting data—two GPS sources showing different positions, for example. Your chartplotter's network page shows all detected devices and lets you prioritise data sources. If you have both internal and external GPS, decide which is authoritative and disable the other.

Protecting your investment: maintenance and security

Aussie conditions—sun, salt, humidity, and vibration—stress marine electronics. Simple habits extend component life significantly.

Sun and heat protection

Use a console cover when the boat is not in use. Sun covers for displays prevent UV damage to screens and housing. Where possible, mount displays in shaded positions; direct sunlight reduces screen readability and accelerates component aging.

Salt and corrosion prevention

Salt spray migrates into connections and accelerates corrosion. Rinse electronics with fresh water after salt sessions, paying attention to cable connections and transducer faces. Check connector pins periodically for corrosion; clean with electrical contact cleaner if needed. Keeping connections coated with a light spray of corrosion inhibitor helps in harsh environments.

Secure mounting and storage

Secure all cables with proper clips and routes—loose cables vibrate and eventually break. When trailering, remove or protect displays from vibration. If your boat is moored, consider removing portable electronics or using locking storage.

Final thought: integration serves fishing

Integrated electronics should make your fishing more productive, not more complicated. The goal is having the right information at the right time—depth when you're searching for structure, radar when you're running offshore in fog, AIS when you're navigating busy channels. Start with a clear primary display, add compatible devices that serve your fishing style, and build the network methodically. When your electronics work together as a system, you spend less time wrestling gear and more time casting where fish hold.
